This microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.



The headset construction is unique. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications, is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity.



The microphone’s sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly, the microphone will be able to handle very high sound pressure levels up to 144 dB SPL before clipping occurs.


CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.



THIS IS THE CORE+ VERSION OF THIS PARTICULAR DPA MICROPHONE

CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn’t acoustically possible. This technology neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.


  • Effectively negates microphone distortion across the entire dynamic range
  • Captures the purest, clearest sound at the source
  • Lets sound engineers focus on shaping an extraordinary experience for the audience
  • Reduces hassle from unpredictable challenges in the live show environment



IP58 certified

All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:

•    Water-repellant nano-coating of the cover and housing
•    Hermetic sealing of the sensitive amplifier at the core of the mic
•    Dual gold plating of the diaphragm



For more information on CORE+ by DPA, visit https://www.dpamicrophones.com/campaign/core-plus/

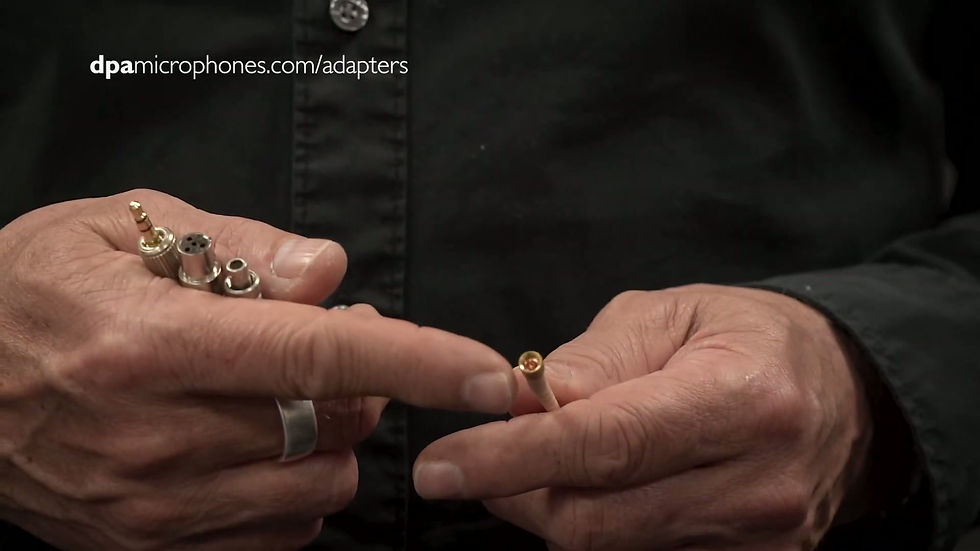

ALL MICROPHONES COME IN A MICROLOCK TERMINATION

MicroLock connections on your DPA Microphones ensures that your microphone is compatible with all professional wireless systems and bodypacks. Just purchase the right adaptor for your wireless systems and your microphone will not be rendered as a one-trick pony. for a list of DPA MicroLock adaptors, please see below:



Standard XLR - DAD9001/DAD9099


Sennheiser Evolution / G2 / G3 Series - DAD9034
Sennheiser EWDI (SKDI) - DAD9034
Sennheiser SK 50 - DAD9003
Sennheiser SK 250 - DAD9003
Sennheiser SK 2000 - DAD9003
Sennheiser SK 3063 - DAD9003
Sennheiser SK 5012 - DAD9003
Sennheiser SK 9000 - DAD9003



Shure GLXD1 - DAD9010
Shure PGX1 - DAD9010
Shure SC1 - DAD9010
Shure SLX1 - DAD9010
Shure U1 - DAD9010
Shure ULX1 - DAD9010
Shure ULDX1 - DAD9010
Shure UR1 - DAD9010
Shure UR1M - DAD9010
Shure UR1MLemo3 - DAD9003
Shure UT1 - DAD9010



Audio-Technica AEW-T1000 - DAD9033
Audio-Technica ATW-110G - DAD9033
Audio-Technica ATW-1501 - DAD9033
Audio-Technica ATW-T310 - DAD9033
Audio-Technica ATW-T701 - DAD9033
Audio-Technica ATW-T1000 - DAD9033
Audio-Technica ATW-T1001EX - DAD9033



Audio Ltd. En2 TX - DAD9034



Line 6 TB12 - DAD9010
Line 6 X2 Digital Wireless - DAD9034
Line 6 XD-V70L - DAD9010

DPA Microphones CORE+ 4066 Directional Headset Mic, MicroLock

  • Directional pattern

    Omnidirectional

    Principle of operation

    Pressure

    Cartridge type

    Pre-polarized condenser

    Frequency response

    20 Hz - 20 kHz

    Effective frequency range ±2 dB

    Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
    High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz

    Sensitivity, nominal, ±3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

    Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))

    Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

    Distortion, THD < 0.5%

    133 dB SPL RMS, 136 dB SPL peak

    Distortion, THD < 1%

    136 dB SPL RMS, 139 dB SPL peak

    Dynamic range

    Typ. 111 dB

    Max. SPL, THD 10%

    144 dB SPL peak

    Rated output impedance

    30 - 40 Ω

    Cable drive capability

    Up to 300 m (984 ft) with DAD9001-BC XLR Adapter

    Power supply (for full performance)

    For wireless systems Min. 5 V - max. 10 V through DPA adapter
    With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

    Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter

    Connector

    MicroLock

    Weight

    14 g (0.5 oz) incl. Cable and MicroLock connector

    Microphone diameter

    5.4 mm (0.21 in)

    Cable length

    1.2 m (3.9 ft)

    Cable diameter

    1.6 mm (0.06 in)

    Polarity

    Positively increasing sound pressure produces positive going voltage on MicroLock pin

    Temperature range

    -40°C to 45°C (-40°F to 113°F)

    Relative humidity (RH)

    Up to 90%

    Colors

    Black, Beige, Brown, White

  • 2-Year warranty by serial number. Does not cover wear and tear by analysis of DPA Microphones A/S. Two-way shipping to be borned by buyer unless product is found to be defective by manufacturing defects.
